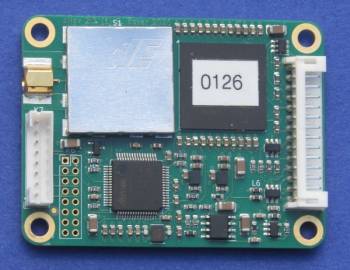

pNav2 - Pico Satellite GPS Receiver

GPS L1 C/A navigation receiver for CubeSats
Small size and low mass, compatible with 1U CubeSats
Low power consumption
Radiation-tolerant design for long-term operation in LEO
15 tracking channels
DSP-assisted fast satellite acquisition
Dead reckoning during GPS signal outages
Customizable data protocols
- Extended NMEA protocol
- Easy-to-process binary protocol
- ECEF position and velocity vectors
Easy-to-integrate antenna kit
Development kit available
Evaluation software
Engineering Model and Flight Model licenses
Flight heritage

pAnt - GPS L1 Antenna Kit

Easy to integrate GPS L1 Antenna
- Patch antenna
- Antenna Cap
- LNA
- Test panel
Small dimensions
Low power consumption
No special knowledge for integration

The CubeSat navigation receiver should be as simple as possible.
It should integrate all necessary functions for navigation in Low Earth Orbit (LEO).
It should be compatible with a 1U CubeSat platform, i.e., power consumption should be a fraction of the power budget of 1U satellite. The receiver should be small and light.
The applied signal and measurement processing algorithms should be simple and very robust.
